Perforated Metal

Perforated metal is our speciality. We are experts in understanding perforated patterns and their unique capabilities.

We can advise you on exactly the right perforated metal for your project, fabricating, finishing and delivering it within your budget to even the tightest timescales. We have many popular shapes and sizes in-stock ready-to-ship, with others manufactured to order.

Whether you are using perforated metal for energy-saving benefits, sound control, lighting effects or aesthetic appearance, you can rely on our expertise to achieve the results you need. Our specialised tooling process, extensive tool range and state-of-the-art punching machines can be configured to offer thousands of different panel patterns. Materials used include stainless steel, mild steel, pre-galvanised steel, galvanneal and aluminium.

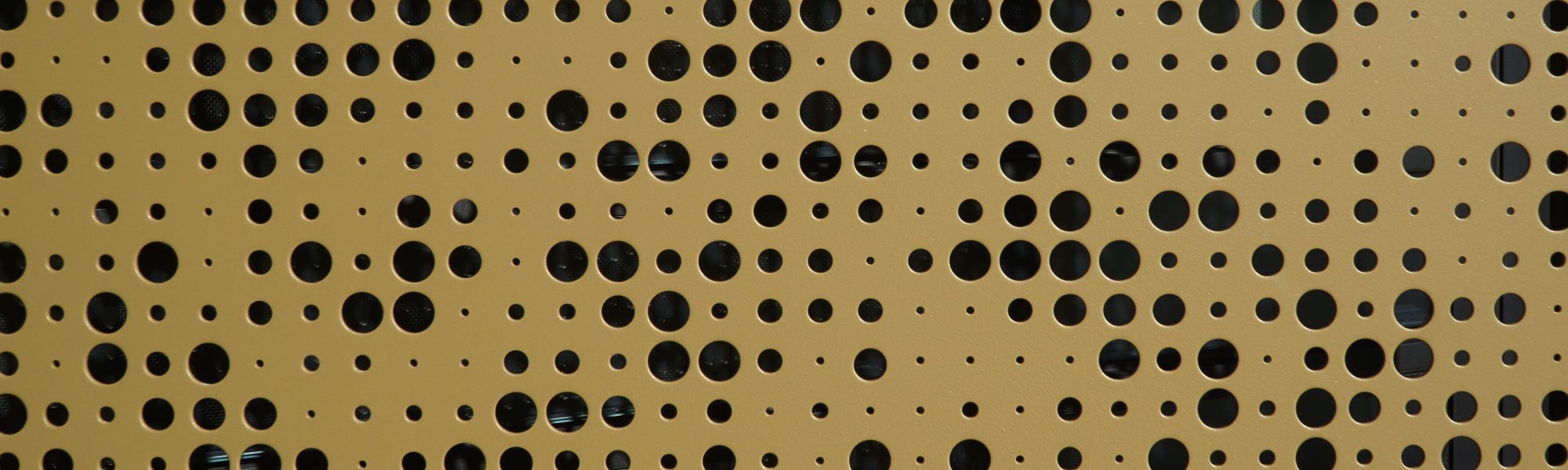

Browse our recently completed project showcase – our products are the trusted choice for architects, designers, engineers and artist

See productsSee PDF Brochure
Perforated Metal

Pattern 204

ShapeRound
Can be made inGalvanneal
Mild Steel
Stainless Steel
Hole Dimensions1.6mm diameter
Pitch2.5mm staggered pitch
Open Area37%
Stocked ItemYes
View Product PDF Enquire about Pattern 204
Perforated Metal

Pattern 208

ShapeRound
Can be made inMild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions2mm diameter
Pitch3mm staggered pitch
Open Area40%
Stocked ItemYes
View Product PDF Enquire about Pattern 208
Perforated Metal

Pattern 210

ShapeRound
Can be made inAluminium
Galvanneal
Hole Dimensions2.4mm diameter
Pitch3.6mm staggered pitch
Open Area40%
Stocked ItemYes
View Product PDF Enquire about Pattern 210
Perforated Metal

Pattern 214

ShapeRound
Can be made inGalvanneal
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions2.4mm diameter
Pitch6.8mm staggered pitch
Open Area11%
Stocked ItemYes
View Product PDF Enquire about Pattern 214
Perforated Metal

Pattern 218

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions3.2mm diameter
Pitch4.8mm staggered pitch
Open Area40%
Stocked ItemYes
View Product PDF Enquire about Pattern 218
Perforated Metal

Pattern 220

ShapeRound
Can be made inAluminium
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions3.2mm diameter
Pitch5.6mm staggered pitch
Open Area30%
Stocked ItemYes
View Product PDF Enquire about Pattern 220
Perforated Metal

Pattern 222

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions3.2mm diameter
Pitch9.6mm staggered pitch
Open Area10%
View Product PDF Enquire about Pattern 222
Perforated Metal

Pattern 224

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions4mm diameter
Pitch12mm staggered pitch
Open Area10%
View Product PDF Enquire about Pattern 224
Perforated Metal

Pattern 226

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions4.8mm diameter
Pitch6.4mm staggered pitch
Open Area51%
Stocked ItemYes
View Product PDF Enquire about Pattern 226
Perforated Metal

Pattern 227

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions4.8mm diameter
Pitch8.4mm pitch
Open Area25%
View Product PDF Enquire about Pattern 227
Perforated Metal

Pattern 228

ShapeRound
Can be made inAluminium
Hole Dimensions4.8mm diameter
Pitch7.9mm staggered pitch
Open Area33%
Stocked ItemYes
View Product PDF Enquire about Pattern 228
Perforated Metal

Pattern 232

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions6.4mm diameter
Pitch11.2m pitch
Open Area25%
View Product PDF Enquire about Pattern 232
Perforated Metal

Pattern 233

ShapeRound
Can be made inAluminium
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions6.4mm diameter
Pitch8.5mm staggered pitch
Open Area50%
Stocked ItemYes
View Product PDF Enquire about Pattern 233
Perforated Metal

Pattern 234

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions6.4mm diameter
Pitch9.5mm staggered pitch
Open Area40%
Stocked ItemYes
View Product PDF Enquire about Pattern 234
Perforated Metal

Pattern 238

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions8mm diameter
Pitch9.5mm staggered pitch
Open Area62%
Stocked ItemYes
View Product PDF Enquire about Pattern 238
Perforated Metal

Pattern 239

ShapeRound
Can be made inAluminium
Brass
Hole Dimensions8mm diameter
Pitch10mm staggered pitch
Open Area58%
View Product PDF Enquire about Pattern 239
Perforated Metal

Pattern 240

ShapeRound
Can be made inAluminium
Stainless Steel
Hole Dimensions8mm diameter
Pitch11.1mm staggered pitch
Open Area47%
Stocked ItemYes
View Product PDF Enquire about Pattern 240
Perforated Metal

Pattern 241

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions8mm diameter
Pitch19.2mm staggered pitch
Open Area16%
View Product PDF Enquire about Pattern 241
Perforated Metal

Pattern 244

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions9.5mm diameter
Pitch12.7mm staggered pitch
Open Area51%
Stocked ItemYes
View Product PDF Enquire about Pattern 244
Perforated Metal

Pattern 246

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions9.5mm diameter
Pitch14.3mm staggered pitch
Open Area40%
Stocked ItemYes
View Product PDF Enquire about Pattern 246
Perforated Metal

Pattern 247

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions9.5mm diameter
Pitch18.9mm pitch
Open Area20%
View Product PDF Enquire about Pattern 247
Perforated Metal

Pattern 252

ShapeRound
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions12.7mm diameter
Pitch17.3 staggered pitch
Open Area49%
Stocked ItemYes
View Product PDF Enquire about Pattern 252
Perforated Metal

Pattern 253

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions12.7mm diameter
Pitch22.9mm pitch
Open Area24%
View Product PDF Enquire about Pattern 253
Perforated Metal

Pattern 255

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions15mm diameter
Pitch25mm staggered pitch
Open Area33%
View Product PDF Enquire about Pattern 255
Perforated Metal

Pattern 258

ShapeRound
Can be made inAluminium
Mild Steel
Hole Dimensions19mm diameter
Pitch25.4mm staggered pitch
Open Area51%
Stocked ItemYes
View Product PDF Enquire about Pattern 258
Perforated Metal

Pattern 259

ShapeRound
Can be made inAluminium
Brass
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions19mm diameter
Pitch25.4mm straight pitch
Open Area44%
View Product PDF Enquire about Pattern 259
Perforated Metal

Pattern 260

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions25.4mm diameter
Pitch35mm staggered pitch
Open Area48%
View Product PDF Enquire about Pattern 260
Perforated Metal

Pattern 261

ShapeRound
Can be made inAluminium
Brass
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions25.4mm diameter
Pitch35mm straight pitch
Open Area41%
View Product PDF Enquire about Pattern 261
Perforated Metal

Pattern 284

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions40mm diameter
Pitch50mm staggered pitch
Open Area58%
View Product PDF Enquire about Pattern 284
Perforated Metal

Pattern 287

ShapeRound
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions70mm diameter
Pitch100mm staggered pitch
Open Area44%
View Product PDF Enquire about Pattern 287
Perforated Metal

Pattern 368

ShapeRound end slot
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Hole Dimensions3.2mm (H) x 19mm (W)
Open Area41%
View Product PDF Enquire about Pattern 368
Perforated Metal

Pattern 376

ShapeRound end slot
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions7mm (H) x 25mm (W)
Open Area45%
View Product PDF Enquire about Pattern 376
Perforated Metal

Pattern 377

ShapeRound end slot
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions7mm (H) x 25mm (W)
Open Area45%
View Product PDF Enquire about Pattern 377
Perforated Metal

Pattern 378

ShapeRound end slot
Can be made inAluminium
Brass
Hole Dimensions7mm (H) x 52mm (W)
View Product PDF Enquire about Pattern 378
Perforated Metal

Pattern 379

ShapeRound end slot
Can be made inAluminium
Brass
Hole Dimensions7mm (H) x 52mm (W)
Open Area42%
View Product PDF Enquire about Pattern 379
Perforated Metal

Pattern 382

ShapeRound end slot
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions12mm (H) x 30mm (W)
Open Area37%
View Product PDF Enquire about Pattern 382
Perforated Metal

Pattern 384

ShapeRound end slot
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions16mm (H) x 40mm (W)
Open Area40%
View Product PDF Enquire about Pattern 384
Perforated Metal

Pattern 391

ShapeRectangle
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions6.35mm (H) x 31.75mm (W)
Open Area43%
View Product PDF Enquire about Pattern 391
Perforated Metal

Pattern 392

ShapeRectangle
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions7mm (H) x 52mm (W)
Open Area43%
View Product PDF Enquire about Pattern 392
Perforated Metal

Pattern 396

ShapeRectangle
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions8mm (H) x 75mm (W)
Open Area43%
View Product PDF Enquire about Pattern 396
Perforated Metal

Pattern 397

ShapeRectangle
Can be made inAluminium
Brass
Mild Steel
Hole Dimensions8mm (H) x 75mm (W)
Open Area48%
View Product PDF Enquire about Pattern 397
Perforated Metal

Pattern 405

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions6.35mm x 6.35mm
Pitch16.7mm staggered pitch
Open Area29%
View Product PDF Enquire about Pattern 405
Perforated Metal

Pattern 412

ShapeSquare
Can be made inPre-Galvanised Steel
Hole Dimensions8mm x 8mm
Pitch11mm straight pitch
Open Area53%
Stocked ItemYes
View Product PDF Enquire about Pattern 412
Perforated Metal

Pattern 413

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions8mm x 8mm
Pitch12mm straight pitch
Open Area44%
View Product PDF Enquire about Pattern 413
Perforated Metal

Pattern 418

ShapeSquare
Can be made inAluminium
Mild Steel
Pre-Galvanised Steel
Hole Dimensions11.1mm x 11.1mm
Pitch15.9mm straight pitch
Open Area49%
Stocked ItemYes
View Product PDF Enquire about Pattern 418
Perforated Metal

Pattern 419

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions11.1mm x 11.1mm
Pitch15.9mm staggered pitch
Open Area49%
View Product PDF Enquire about Pattern 419
Perforated Metal

Pattern 424

ShapeSquare
Can be made inAluminium
Hole Dimensions15mm x 15mm
Pitch20mm straight pitch
Open Area56%
View Product PDF Enquire about Pattern 424
Perforated Metal

Pattern 432

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions20mm x 20mm
Pitch35mm straight pitch
Open Area33%
View Product PDF Enquire about Pattern 432
Perforated Metal

Pattern 433

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions20mm x 20mm
Pitch35mm staggered pitch
Open Area33%
View Product PDF Enquire about Pattern 433
Perforated Metal

Pattern 434

ShapeRadiused Square
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions20mm x 20mm
Pitch25mm straight pitch
Open Area60%
View Product PDF Enquire about Pattern 434
Perforated Metal

Pattern 435

ShapeRadiused Square
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions20mm x 20mm
Pitch25mm diagonal pitch
Open Area60%
View Product PDF Enquire about Pattern 435
Perforated Metal

Pattern 448

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions30mm x 30mm
Pitch40mm staggered pitch
Open Area56%
View Product PDF Enquire about Pattern 448
Arrow Metal perforated metal - square holes
Perforated Metal

Pattern 449

ShapeSquare
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Stainless Steel
Hole Dimensions30mm x 30mm
Pitch40mm diagonal pitch
Open Area56%
View Product PDF Enquire about Pattern 449
Perforated Metal

Pattern 520

ShapeRound
Can be made inPre-Galvanised Steel
Stainless Steel
Hole Dimensions14mm diameter raised holes
Pitch38.1mm straight pitch
Open Area11%
View Product PDF Enquire about Pattern 520
Perforated Metal

Pattern 524

ShapeRound
Can be made inAluminium
Mild Steel
Hole Dimensions20mm diameter
Pitch38.1mm straight pitch
Open Area14%
View Product PDF Enquire about Pattern 524
Perforated Metal

Pattern 610

Perforated hexagon holes, staggered arrangement

ShapeHexagon
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions10mm hexagon
Pitch12.5mm
Open Area64%
View Product PDF Enquire about Pattern 610
Arrow Metal perforated metal - 28mm hexagon holes
Perforated Metal

Pattern 628

ShapeHexagon
Can be made inAluminium
Brass
Galvanneal
Mild Steel
Pre-Galvanised Steel
Hole Dimensions28mm hexagon
Open Area54%
View Product PDF Enquire about Pattern 628

Enquire about

  • Drop files here or
    Accepted file types: jpg, png, pdf, doc, docx, xls, xlsx, csv.
    • This field is for validation purposes and should be left unchanged.

    Sign up to receive our newsletter

    • This field is for validation purposes and should be left unchanged.
